Printing Grade PC Film

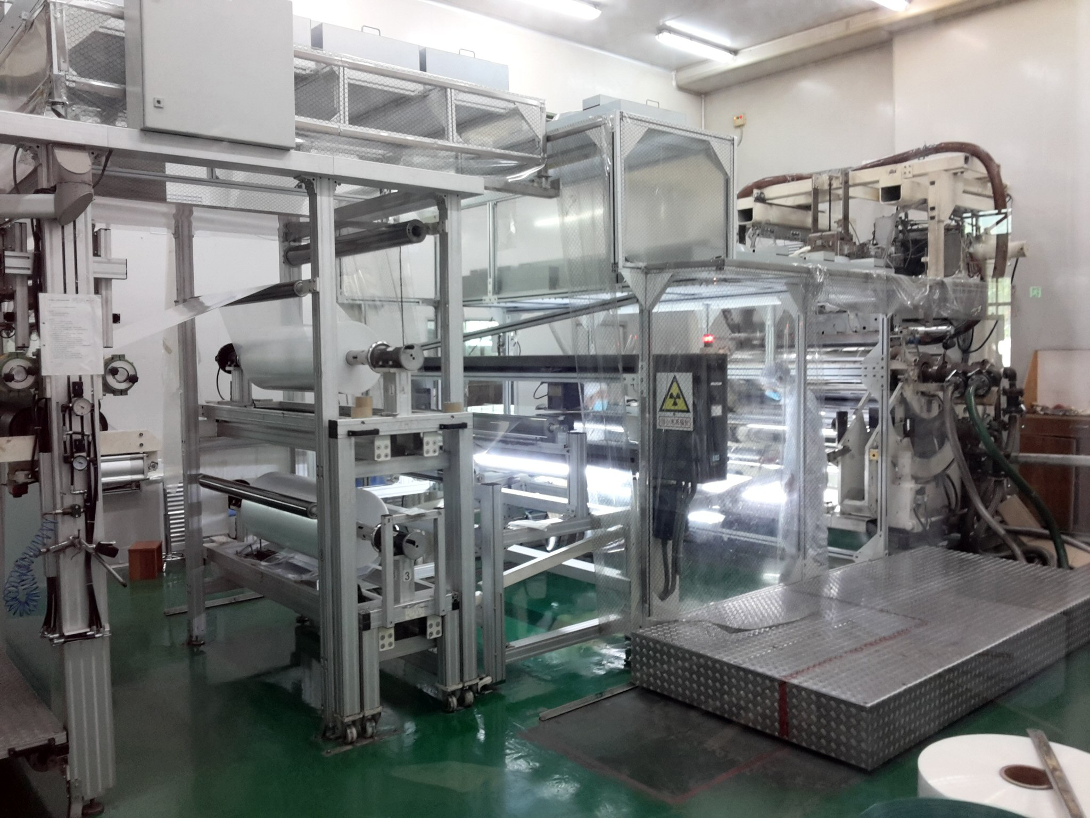

HX, with expertise in manufacture of PC film & sheet for 20 years, with 6 extrusion lines with over 2000 ton/ month capacity, together with the use of the world brand PC resin, we produce & offer a broad range of PC film & sheet, named & compared as below:
Printing grade PC-V2
| HX Product Code | Description | Equivalent to Brand |
|---|---|---|
| GG-Optical | Optcal Gloss / Gloss PC Film | Suit for coating, metalizing, high-class printing |
| GG | Gloss / Gloss PC Film |
Sabic Lexan 8010 Convestro Makolon DE1-1 Sumitomo Japan EC101 Teijin 1151 |
| VG | Velvet / Gloss PC Film |
Sabic Lexan 8A35 Convestro Makorlon DE6-1 |
| MG | Matte / Gloss PC Film |
Sabic Lexan 8A13 Convestro Makorlon DE1-4 |
| VM | Velve Matte PC Film |
Sabic Lexan 8B35 Convestro Makorlon DE6-2 Sumitomo Japan EC101-80 |
| FVM | Fine Velvet / Matte PC Film |
Sabic Lexan 8B35F Convestro Makorlon DE4-4 |
Hardcoat grade
| HX Product Code | Description | Equivalent to Brand | Hardness |
|---|---|---|---|
| HCGG | Hardcoat Clear | Lexan HP92S / OQ92 | HB ~ 1H |
| HCGG-AG40 | Hardcoat Anti-glare (Haze: 40%) | Lexan HP12S / HP12W | |
| HCGG-AG28 | Hardcoat Anti-glare (Haze: 28%) | Lexan HP40S / HP40W | |
| HCGG-AG5 | Hardcoat Anti-glare (Haze: 5%) | Lexan HP60S / HP60W | |
| HLPC |
Shredded Hairline PC (Has texture Feel) Soft Shredded Hairline PC (No texture Feel) Long Hairline PC (Has texture Feel) Soft Long Hairline PC (No texture Feel) |
Lexan 8A37 | |
| FVM | Fine Velvet / Matte PC Film |
Sabic Lexan 8B35F Convestro Makorlon DE4-4 |
| W: Anti-UV | AC: Anti-corrosive | AB: Anti-bacterial | AFP: Anti-finger print |
| Thickness (Roll) | 0.125 / 0.175 / 0.25 / 0.375 / 0.43 / 0.5 / 0.76mm |
| Thickness (Sheet) | 0.5 – 2.0mm |
Application
Screen-Printing

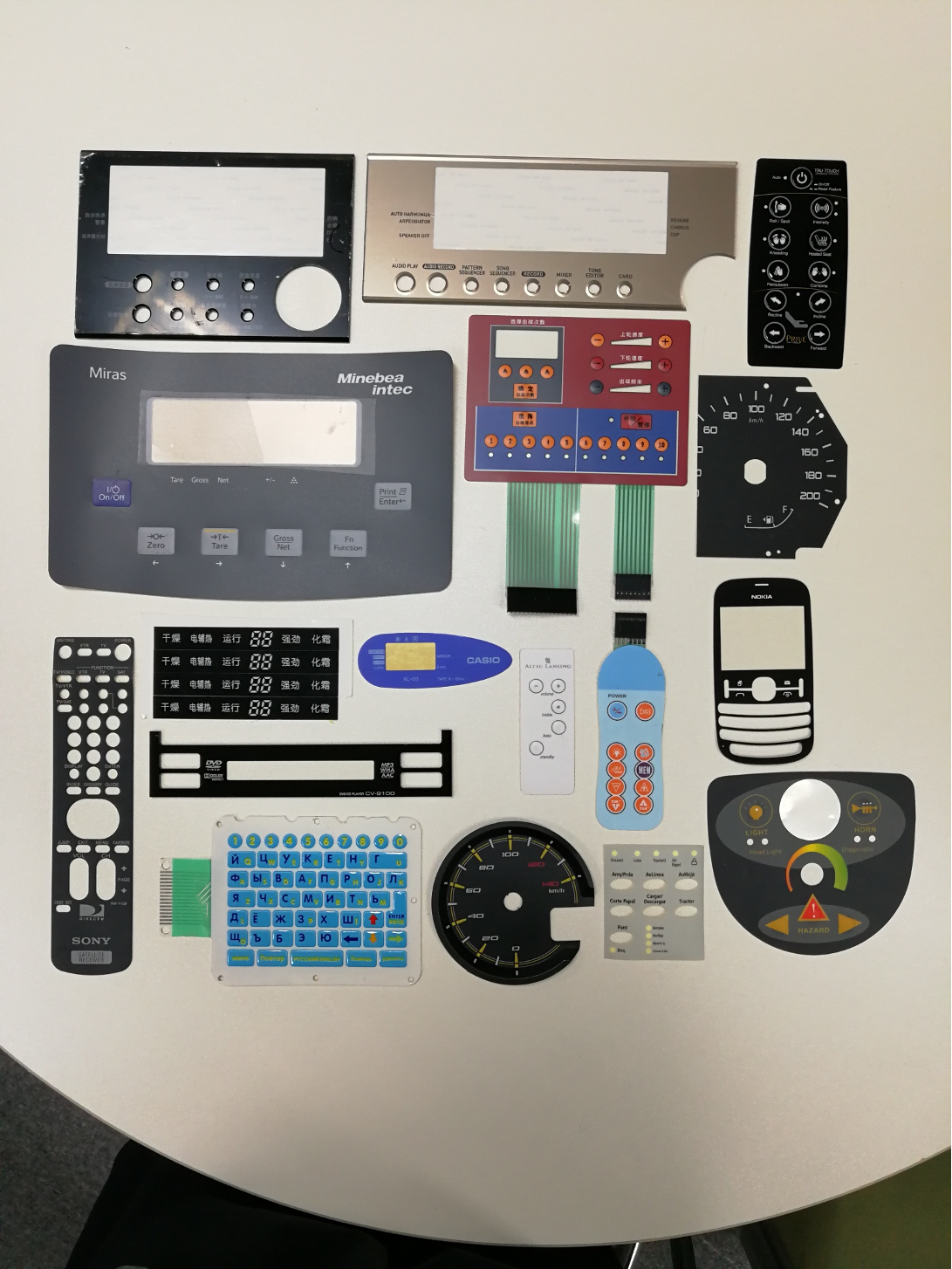

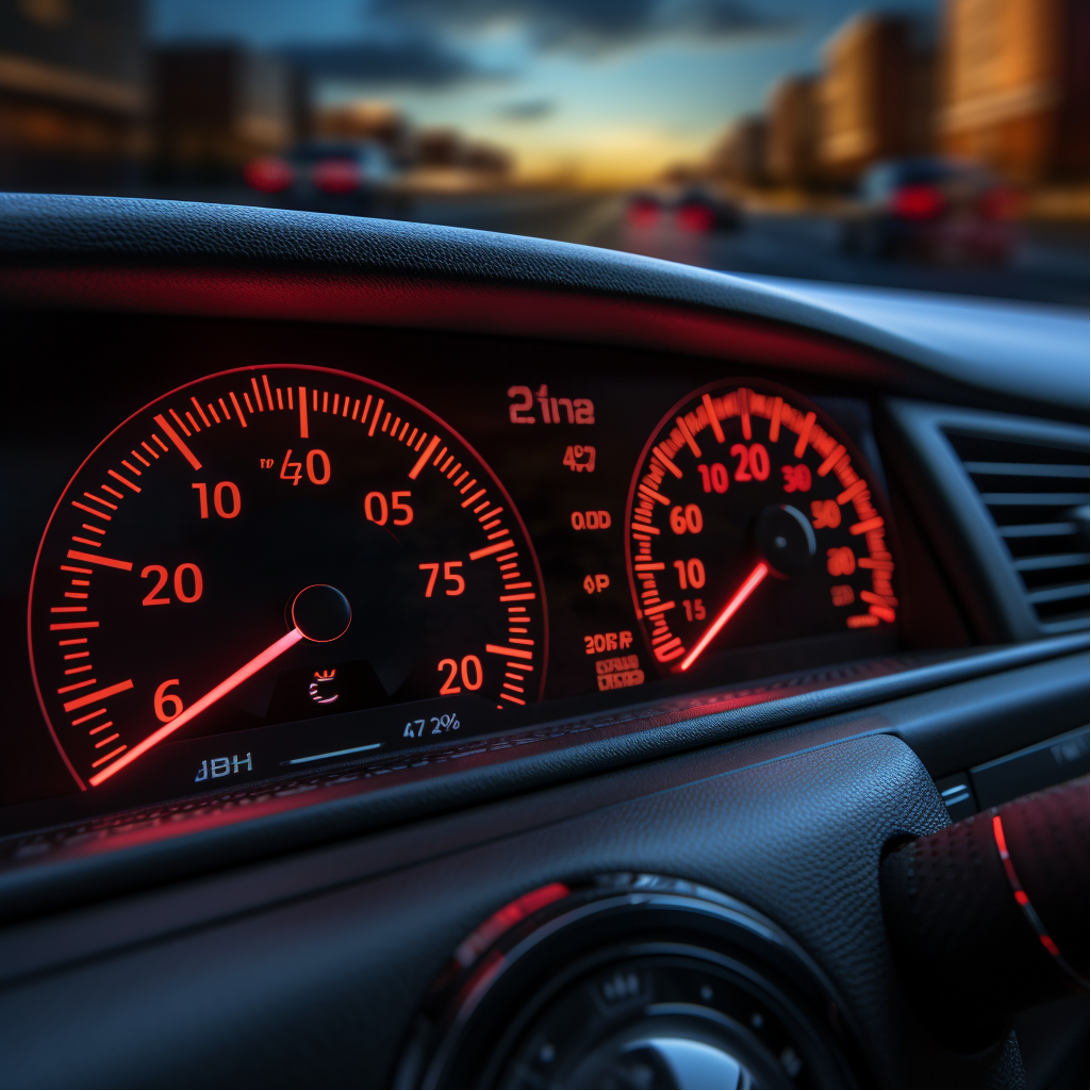

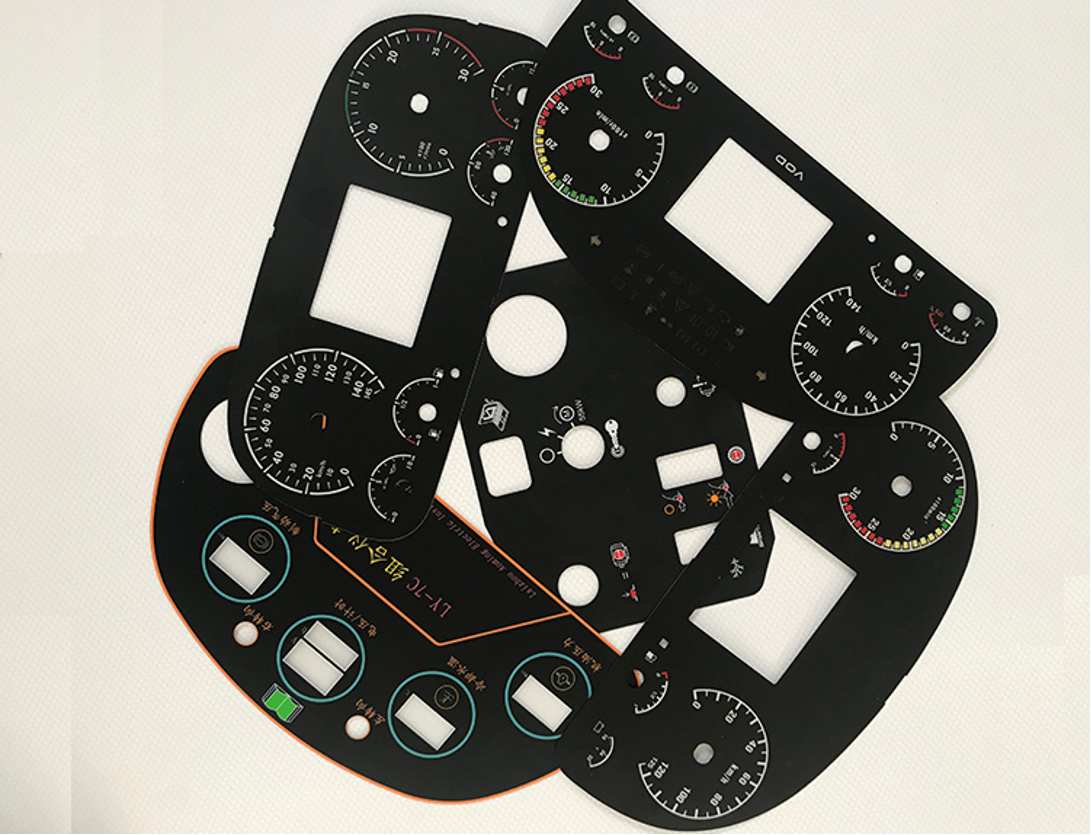

- Membrane switch overlays, automotive dials

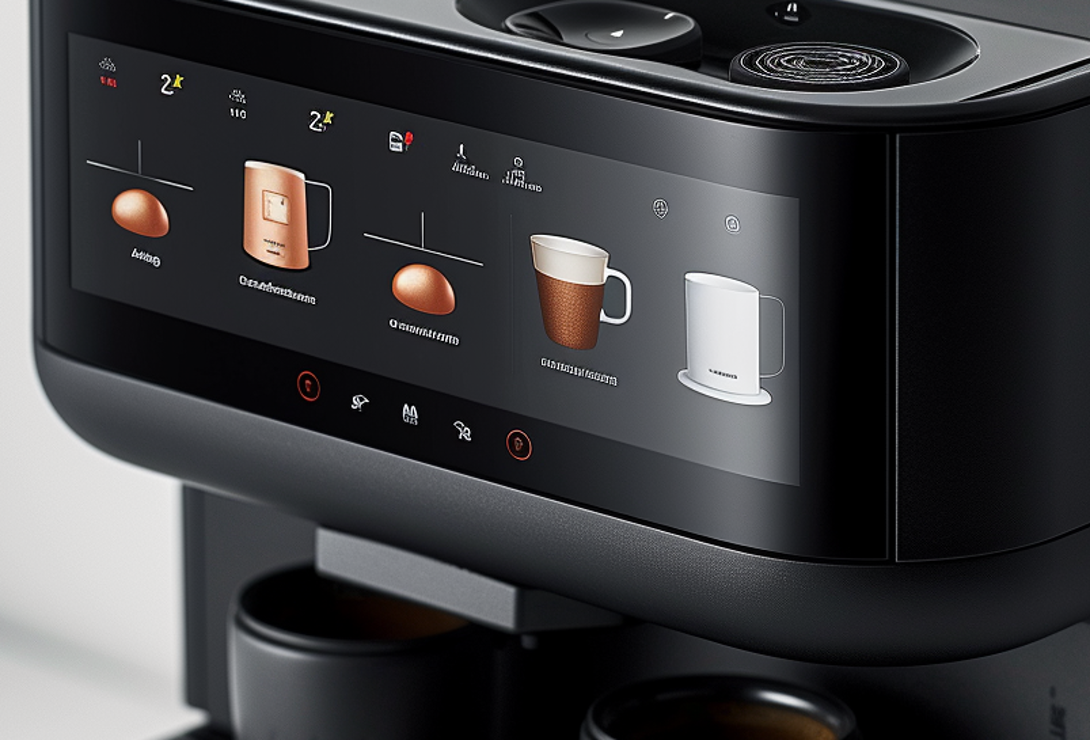

- PC Monitor & LCD/LED TV screen display
- Len for mobile phone & handheld device

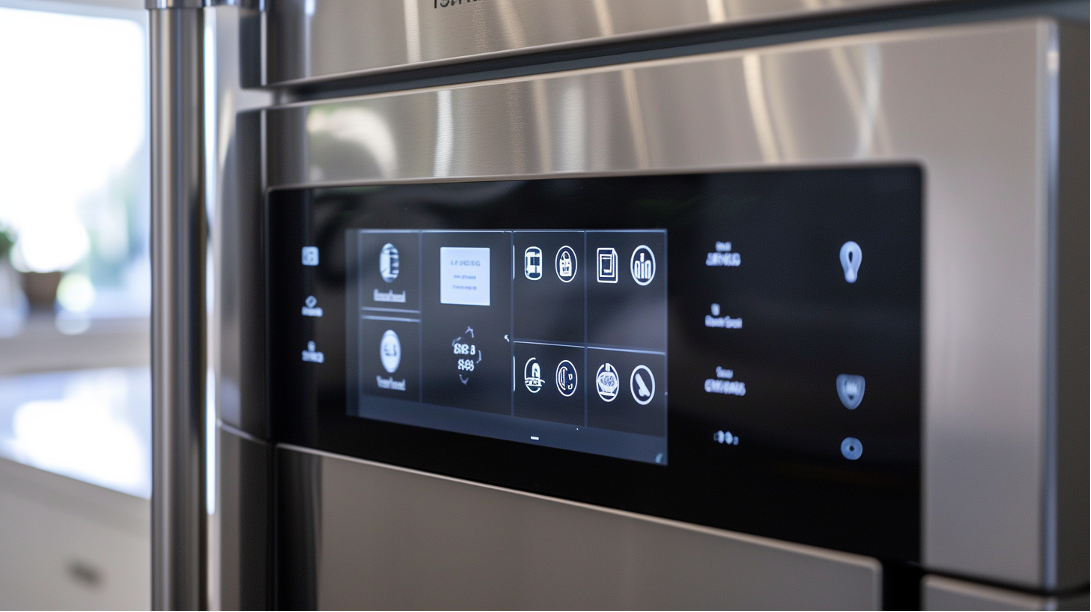

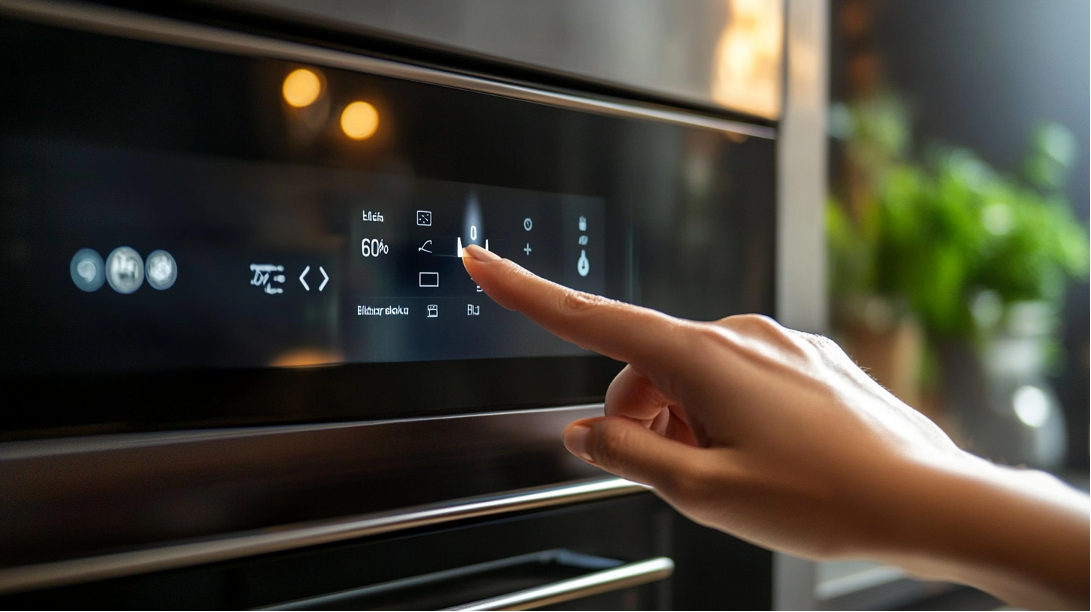

- Label for house appliance, washing machine, boiler
- Helmet design, goggles & face shield
- Mirrors plastic & Silver glass surface
Punch to Insulate
- Insulation parts for TV & notebook
- Insulation barriers for electric plug & socket
- Label & overlays
- Die-cut spacer & insulator
- Mobile device support case
Thermoforming
- Heat form to toy car mould
- PC blister & PC tray

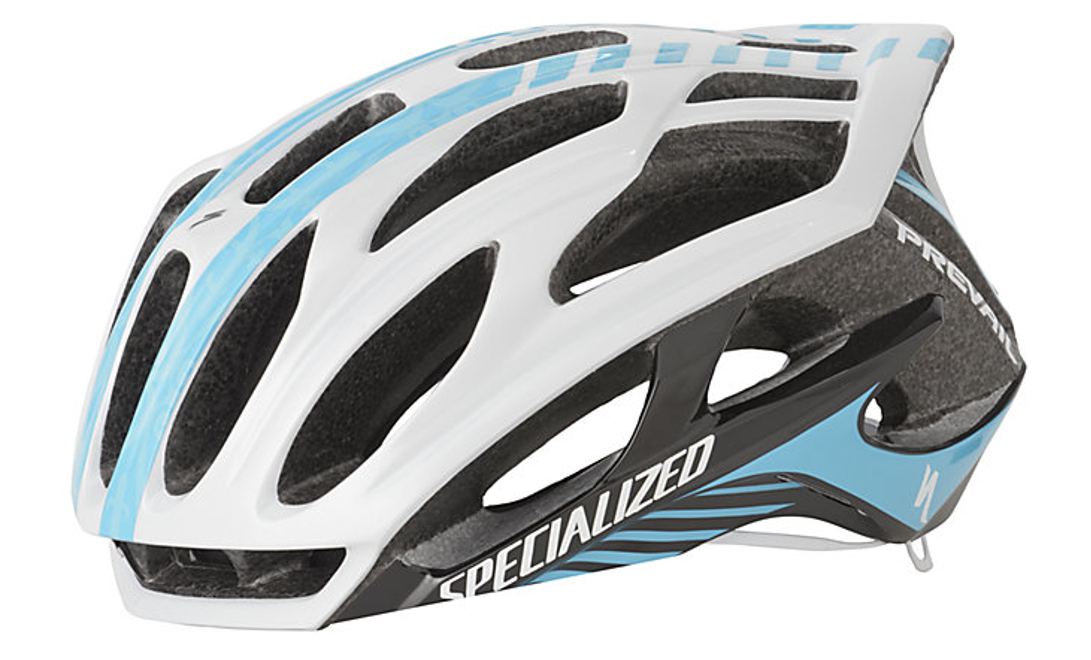

- Bicycle helmet production
- Lamp shape, light shade
Quality products for construction projects and various applications use.
