PC Film

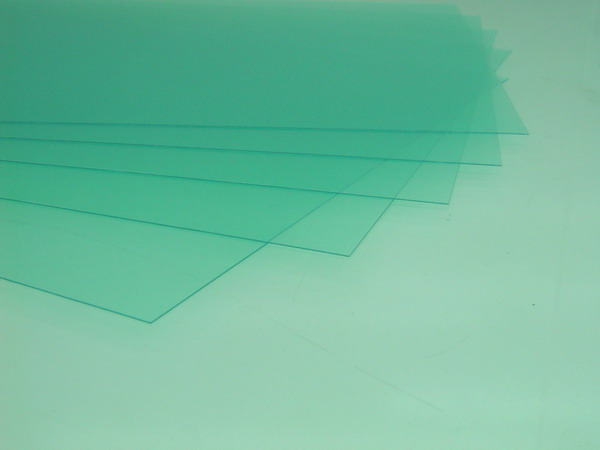

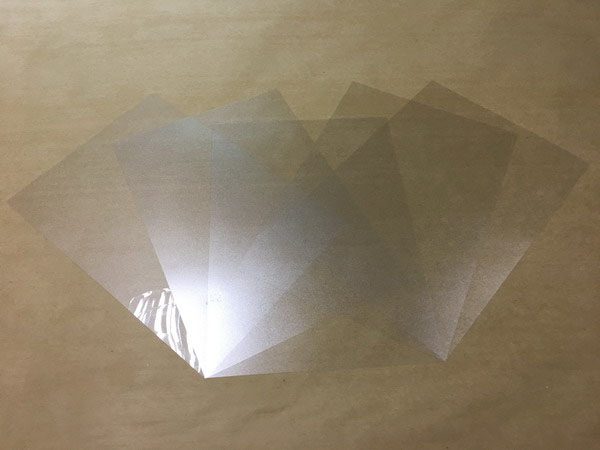

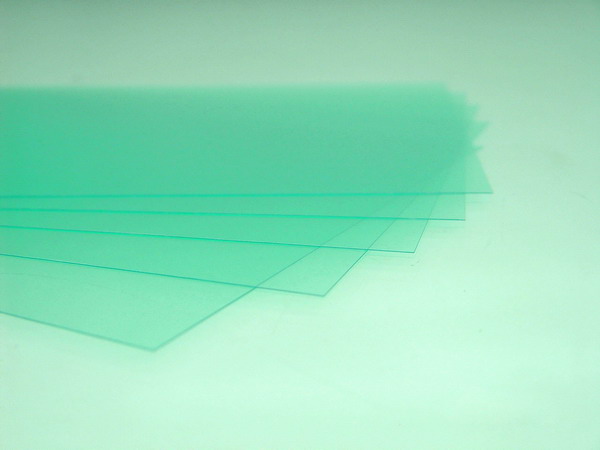

PC Film (Polycarbonate Film)

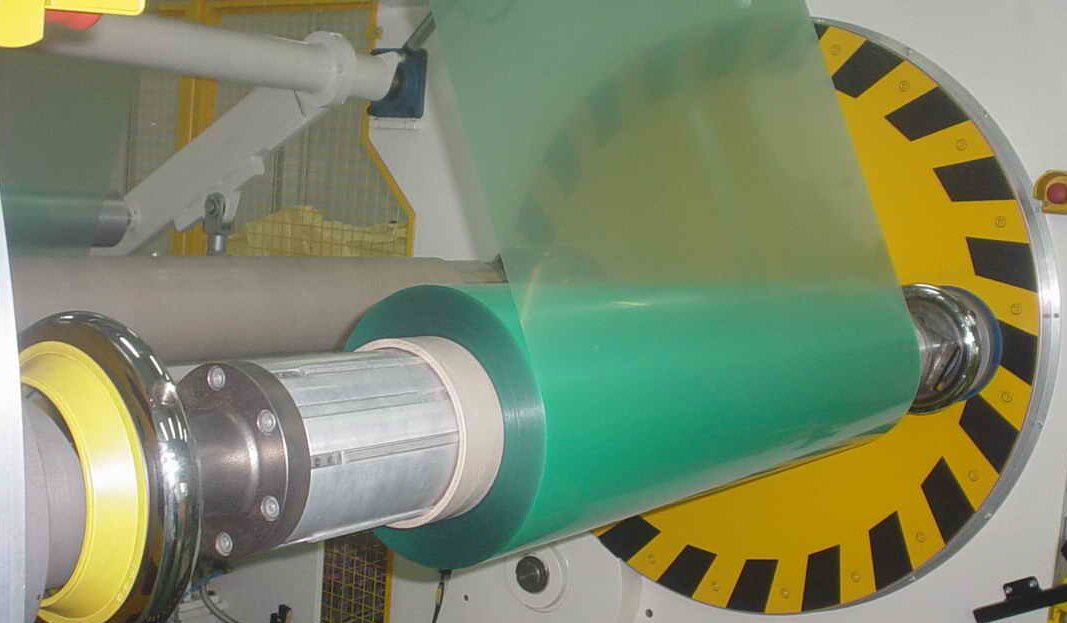

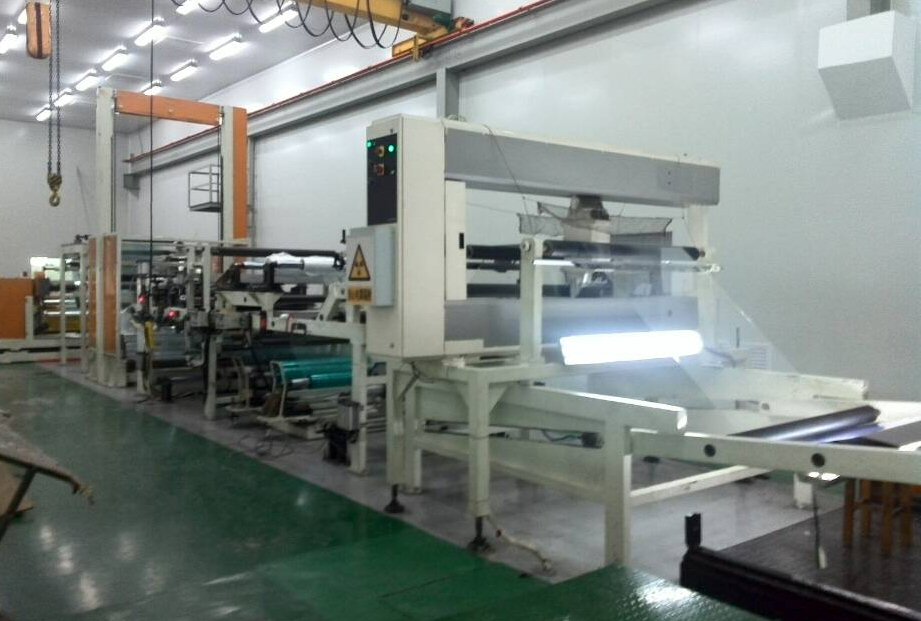

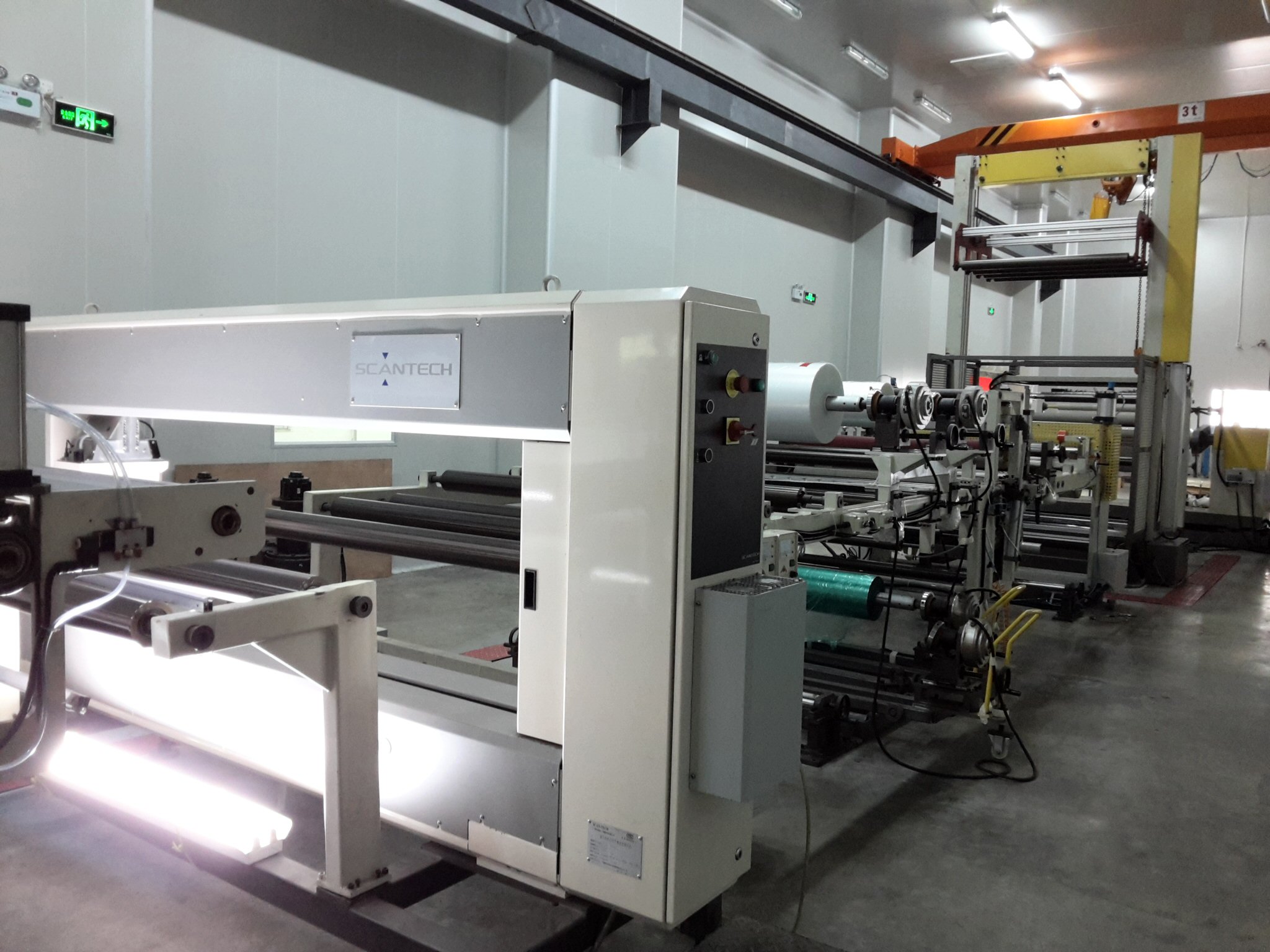

HX, launched an extrusion PC production line to serve daily use of PC film in local and oversea customers from 2005. With the use of the world brand PC resin from GE and Teijin, we produce & offer a broad range of the PC film & sheet, named & compared as below:


HXDescriptionEquivalent to the Brand
(A) Printing Grade
GG-OpticalOptical GlossSuit for coating, metalizing, high-class printing
GGGloss/GlossGE Lexan 8010, Teijin 1151, EC101, 811
VMVelvet/MatteGE Lexan 8B35, 835, EC101-80
MGMatte/GlossGE Lexan 8A13
VGVelvet/GlossGE Lexan 8A35

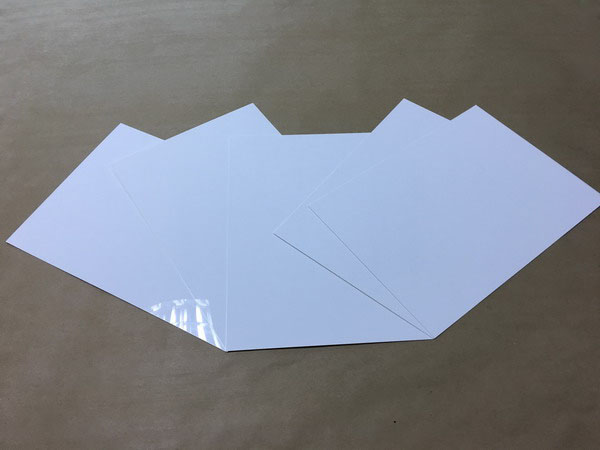

FS13Matte/Gloss Milky White Reflector PC


(B) Flame Retardant Grade
FRPC700Black Velvet/GlossGE Lexan FR700

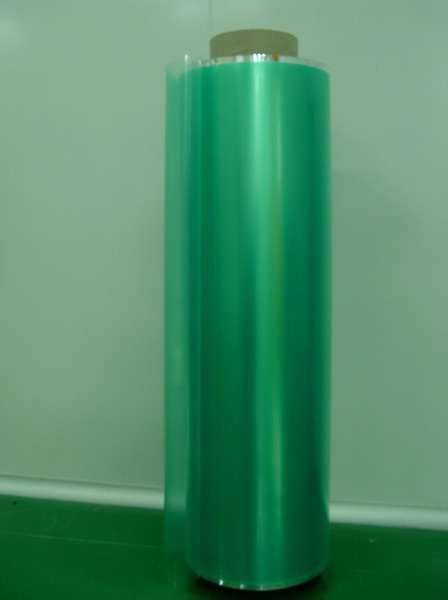

Thickness (Roll)0.125/0.175/0.25/0.375/0.43/0.5/0.76mm

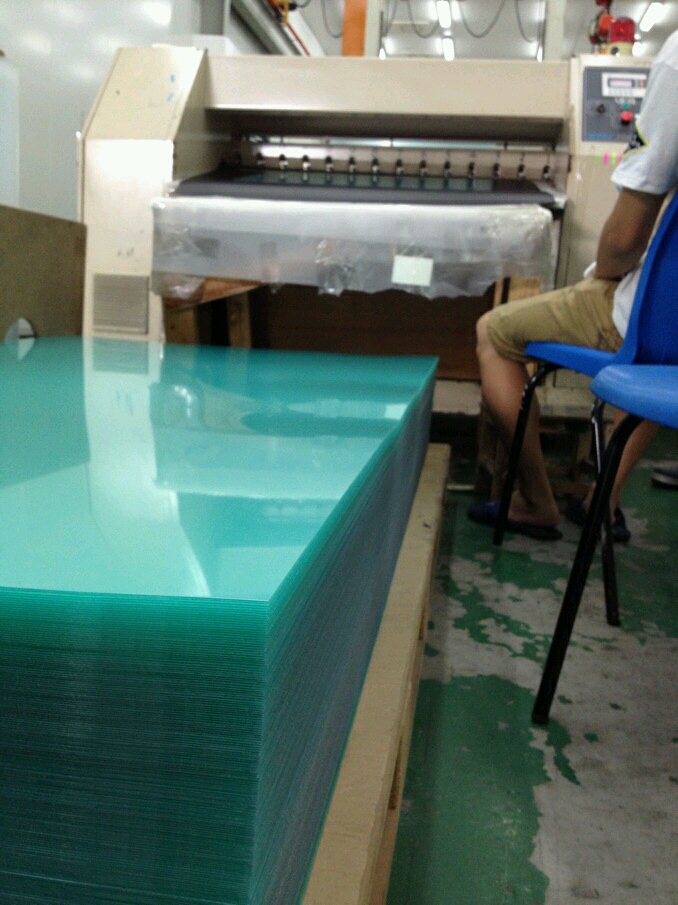

Thickness (Sheet)0.5 – 1.2mm

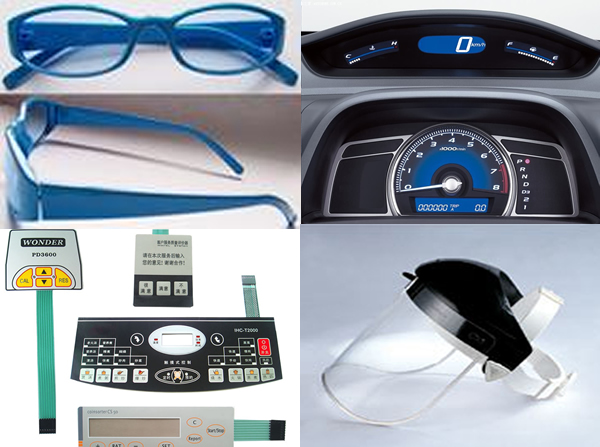

Application
Screen-printing

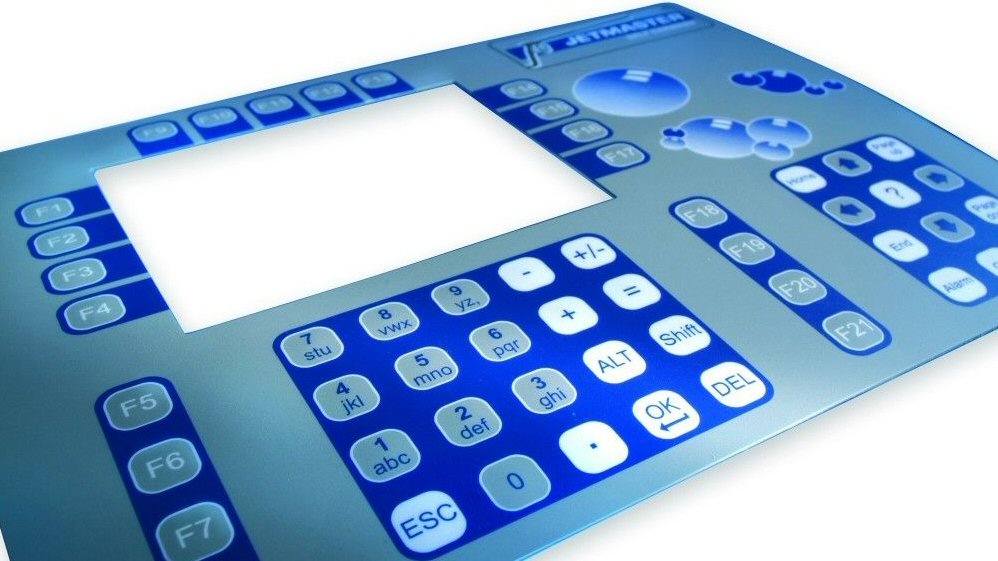

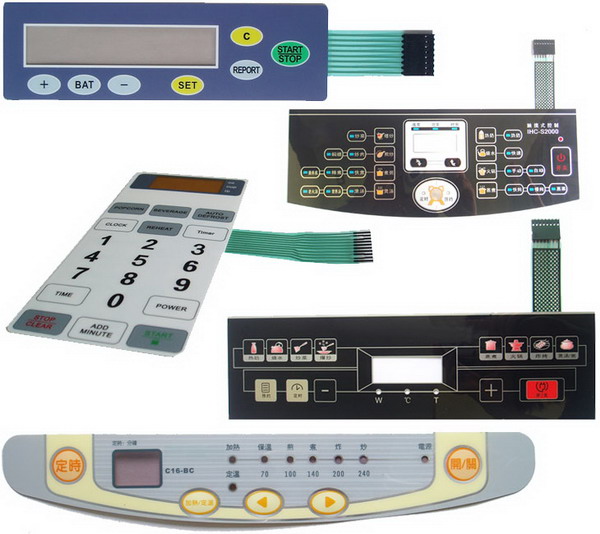

  • - Membrane switch overlays, automotive dials
  • - PC Monitor & LCD/LED TV screen display

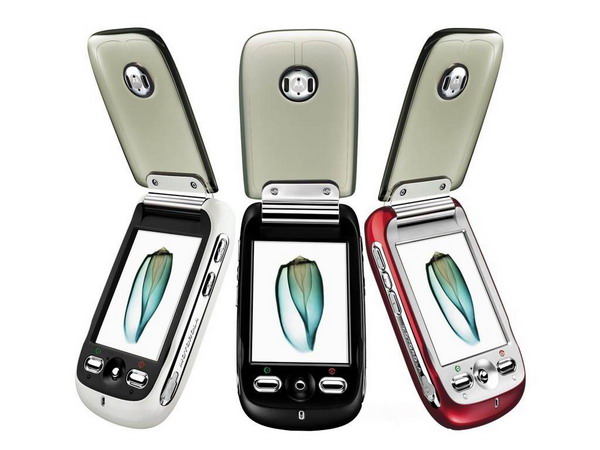

  • - Len for mobile phone & handheld device
  • - Label for house appliance, washing machine, boiler
  • - Helmet design, goggles & face shield
  • - Mirrors plastic & Silver glass surface
Punch to Insulate
  • - Insulation parts for TV & notebook
  • - Insulation barriers for electric plug & socket
  • - Label & overlays
  • - Die-cut spacer & insulator
  • - Mobile device support case
Thermoforming
  • - Heat form to toy car mould
  • - PC blister & PC tray

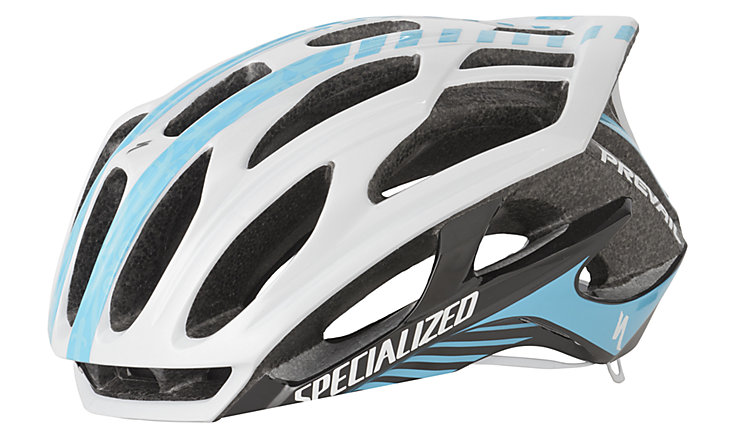

  • - Bicycle helmet production
  • - Lamp shape, light shade
